Features

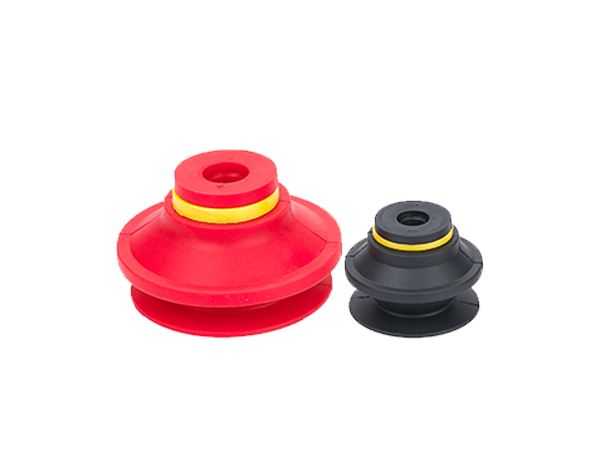

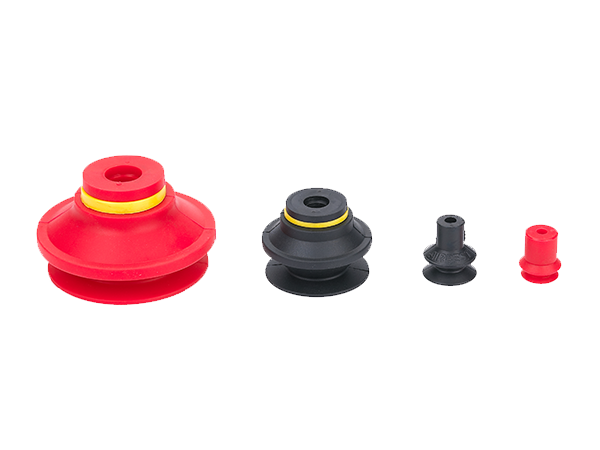

◇ 1.5 bellows suction cup, which can be horizontal adjusted for transferring objects with height difference.
◇ Various materials are available for different workpiece. Conductive silicone material can effectively
prevent static damage to electronic products.
◇ Various sizes for option.
Applications
◇ Smooth wooden plate
◇ Smooth steel plate
◇ Carton box
◇ Electronic component
| How to order | ||||||||
|
SB 30 N -G1F ① ② ③ ④ | ||||||||
| ① Series | ② Diameter | ③ Material&Hardness | ④ Connection thread | |||||
| SB |
5 - φ5mm 6 - φ6mm 8 - φ8mm 10 - φ10mm 12 - φ12mm 15 - φ15mm 17 - φ17mm |
20
- φ20mm 30 - φ30mm 40 - φ40mm 50 - φ50mm 75 - φ75mm 110 - φ110mm 150 - φ150mm |
N - NBR★ S - Silicone★ WS - White silicone CS - Conductive silicone |
Nil - Pad with buckle，no connection thread M5M - M5 Male thread G1F - G1/8 Female thread G1M - G1/8 Male thread G2F - G1/4 Female thread G2M - G1/4 Male thread G3F - G3/8 Female thread G4F - G1/2 Female thread | ||||
◇Note:"★" -common material, in stock. For other materials, please consult with AIRBEST.
| Selection | ||||||||
| Model/ Connection thread |
M5M | G1F | G1M | G2F | G2M | G3F | G3M | G4F |
| SB5 - 15 | ● | - | - | - | - | - | - | - |
| SB17 - 40 | - | ● | ● | - | - | - | - | - |
| SB50 | - | - | - | ● | ● | ● | ● | - |
| SB75 | - | - | - | ● | - | - | - | - |
| SB110 - 150 | - | - | - | - | - | - | - | ● |
◇Note: "●"- standard, in stock. "—"- unavailable
| Technical parameters | ||||
| Model | Pull-out force (N) | Inner volume (cm3) | Min. curve radius of workpiece (mm) | Recommended hose dia. (mm) |
| SB5 | 0.8 | <0.1 | 8 | 4 |
| SB6 | 1.2 | <0.1 | 8 | 4 |
| SB8 | 2.1 | <0.1 | 10 | 4 |
| SB10 | 3.2 | 0.4 | 12 | 4 |
| SB12 | 4.7 | 0.8 | 15 | 6 |
| SB15 | 7.4 | 0.5 | 20 | 6 |
| SB17 | 9.5 | 1.1 | 25 | 6 |
| SB20 | 18 | 1.2 | 30 | 6 |
| SB30 | 33 | 14 | 35 | 6 |
| SB40 | 60 | 18 | 50 | 6 |
| SB50 | 92 | 26 | 80 | 8 |
| SB75 | 210 | 96 | 60 | 8 |
| SB110 | 412 | 314 | 120 | 12 |
| SB150 | 740 | 798 | 160 | 12 |
◇ Note: Testing vacuum level -60kPa.Workpiece with smooth and clean surface. The data of pull-out force as
above are figured out without considering safety factor. The data may be different according to different
workpiece surfaces.

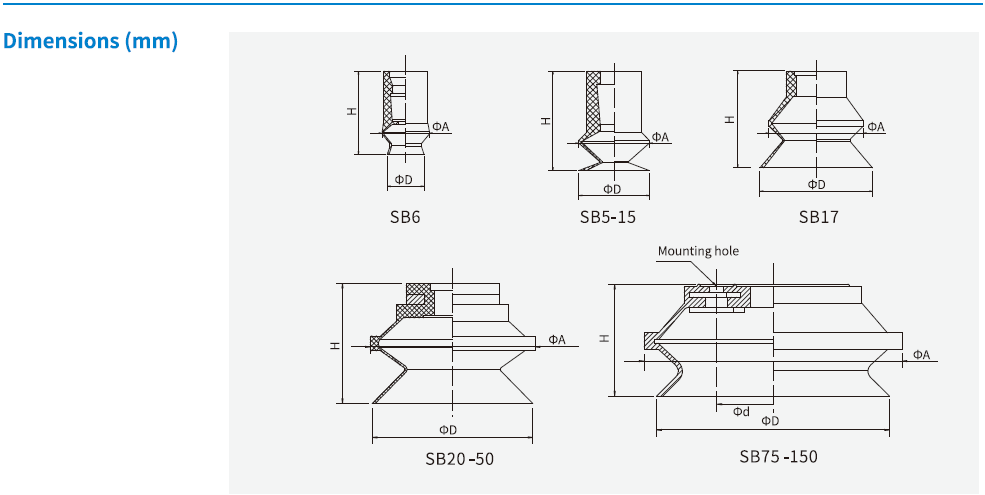

| Model/ Size |
D | A | H | Model/ Size | D | A | H | d | Mounting hole | |
| SB5 | 5.8 | 6.2 | 9.2 | SB20 | 22.0 | 24 | 19 | - | - | |
| SB6 | 7 | 9 | 13.5 | SB30 | 34 | 36 | 26 | - | - | |
| SB8 | 8.8 | 9.6 | 11.9 | SB40 | 43 | 46 | 28 | - | - | |
| SB10 | 11 | 12 | 16 | SB50 | 53 | 58 | 35 | - | - | |
| SB12 | 12 | 14 | 16.5 | SB75 | 78 | 83 | 37 | 35 | 4-Φ6.5 | |
| SB15 | 15.5 | 17.5 | 19.5 | SB110 | 115 | 124 | 54 | 55 | 8-Φ6 | |
| SB17 | 18.5 | 16.6 | 15.6 | SB150 | 155 | 166 | 71 | 70.5 | 8-Φ6 |

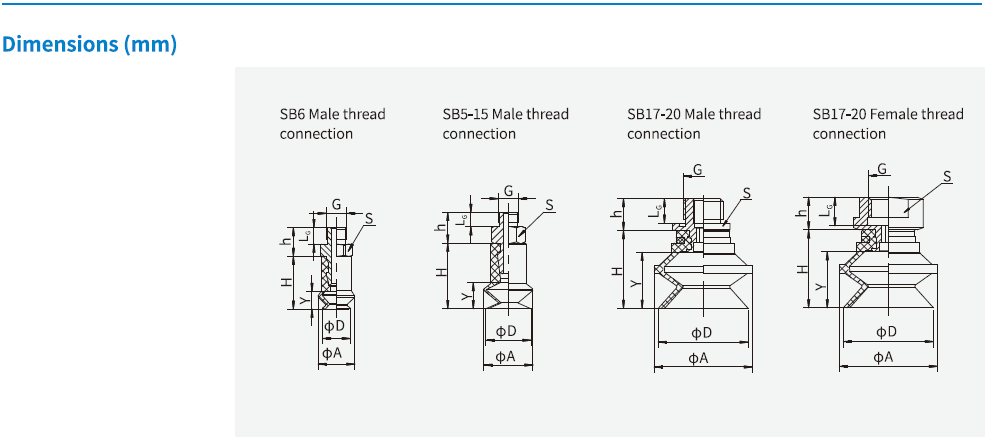

| Model/ Size | D | A | H | G | LG | h | S | Y |
| SB5-M5M | 5.8 | 6.2 | 9.2 | M5 | 3.5 | 7.5 | 7 | - |
| SB6-M5M | 7 | 9 | 13.5 | M5 | 4 | 7 | 7 | 4.5 |
| SB8-M5M | 8.8 | 9.6 | 11.9 | M5 | 3.5 | 7.5 | 7 | 6.5 |
| SB10-M5M | 11 | 12 | 16 | M5 | 3.5 | 7.5 | 7 | 7 |
| SB12-M5M | 12 | 14 | 16.5 | M5 | 3.5 | 7.5 | 7 | 5.5 |
| SB15-M5M | 15.5 | 17.5 | 19.5 | M5 | 3.5 | 7.5 | 7 | 10 |
| SB17-G1F | 18.5 | 16.6 | 15.6 | G1/8 | 7 | 8 | 13 | 10.5 |
| SB17-G1M | 18.5 | 16.6 | 15.6 | G1/8 | 6 | 7.8 | 13 | 10.5 |
| SB20-G1F | 22 | 24 | 19 | G1/8 | 7 | 8 | 13 | 9 |
| SB20-G1M | 22 | 24 | 19 | G1/8 | 6 | 7.8 | 13 | 9 |

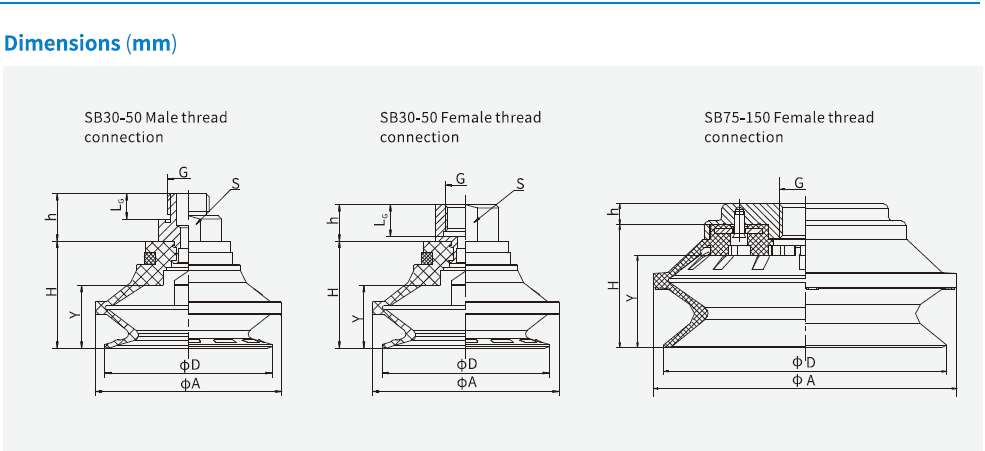

| Model/ Size | D | A | H | G | LG | h | S | Y |
| SB30-G1F | 34 | 36 | 26 | G1/8 | 7 | 10 | 17 | 19 |
| SB30-G1M | 34 | 36 | 26 | G1/8 | 6 | 12 | 17 | 19 |
| SB40-G1F | 43 | 46 | 28 | G1/8 | 7 | 10 | 17 | 20 |
| SB40-G1M | 43 | 46 | 28 | G1/8 | 6 | 12 | 17 | 20 |
| SB50-G2F | 53 | 58 | 35 | G1/4 | 10 | 13 | 24 | 20 |
| SB50-G2M | 53 | 58 | 35 | G1/4 | 9 | 17 | 24 | 20 |
| SB50-G3F | 53 | 58 | 28 | G3/8 | 10 | 13 | 24 | 20 |
| SB50-G3M | 53 | 58 | 28 | G3/8 | 10 | 18 | 24 | 20 |
| SB75-G2F | 78 | 38 | 37 | G1/4 | - | 13 | - | 27 |
| SB110-G4F | 115 | 124 | 54 | G1/2 | - | 9 | - | 38.5 |
| SB150-G4F | 155 | 166 | 71 | G1/2 | - | 10 | - | 44.5 |
| Model of spare parts | ||||||||
| Item | Model | Applicable suction cup | ||||||
| F-Female thread | M-Male thread | |||||||
| Fitting for suction cup | - | PJS-M5M-SC1 | SB6 | |||||
| - | PJS-M5M-SC2 | SB5、8 | ||||||
| - | PJS-M5M-SC3 | SB10、12、15 | ||||||
| PJS-G1F-SF1 | PJS-G1M-SF1 | SB17、20 | ||||||
| PJS-G1F-SF2 | PJS-G1M-SF2 | SB30、40 | ||||||
| PJS-G2F-SF3 | PJS-G2M-SF3 | SB50 | ||||||
| PJS-G3F-SF3 | PJS-G3M-SF3 | SB50 | ||||||
| PJS-G2F-SF4 | - | SB75 | ||||||
| PJS-G4F-SF5 | - | SB110 | ||||||
| PJS-G4F-SF6 | - | SB150 | ||||||
